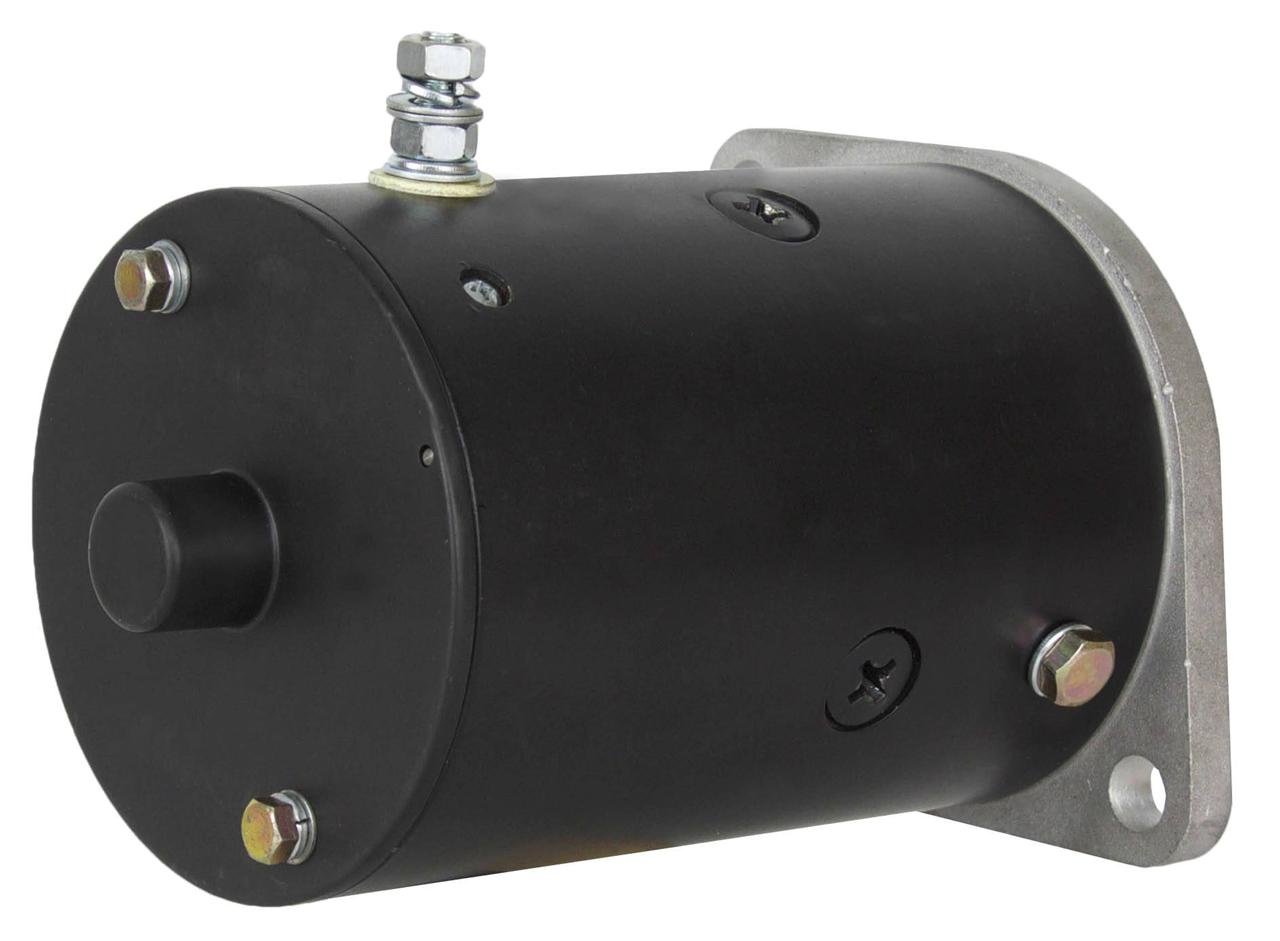

RAREELECTRICAL 12V Snow Plow Motor Compatible with Fisher Western Unimount Hydraulic Pump Lift Cw Slotted Shaft 4-Field Coils Prestolite Mue-6103 Mue-6111 46-2584 Western 56133 56058

12V Snow Plow Motor for Fisher and Western UniMount Hydraulic Pump Systems 12V clockwise electric motor for Fisher and Western snow plow hydraulic pump lift applications. Direct replacement for Prestolite MUE-6103, MUE-6111, MUE-6206, MUE-7001, 46-2473, 46-2584, 46-3618, 46-3938, and MDL-2256. Also cross-references Western 56058, 56062, 56133, 56398, 56410, Fisher A5819, Fenner Stone M4-3499-00, Northman 40008, Bosch 9130450083, and W-8994. This motor features a 16mm slotted shaft, dual 5/16-24 terminals, 4.5-inch frame, 4-field coil design, single ball bearing, oil seal at the drive end, and an included mounting plate with two 12.9mm ID mounting holes. Delivers 1.7kW (2.28 HP) for reliable hydraulic pump operation on Fisher and Western UniMount snow plow installations. OEM PART NUMBERS: Prestolite: 46-2473 / 46-2584 / 46-3618 / 46-3938 / MDL-2256 / MKW-4009 Prestolite: MUE-6103 / MUE-6103S / MUE-6111 / MUE-6111S / MUE-6206 / MUE-7001 Western: 50133 / 56058 / 56062 / 56133 / 56398 / 56410 / 58058 / 58082 Fisher: A5819 / Fenner Stone: M4-3499-00 / Northman: 40008 Bosch: 9130450083 / W-8994 / W-6994SPECIFICATIONS: Voltage: 12V Rotation: CW (Clockwise) Power: 1.7kW / 2.28 HP Shaft OD: 16mm (0.626 in) Slotted Terminal: 5/16-24 (x2) Field Housing OD: 114.3mm / 4.5 in Overall Length: 209.3mm / 8.24 in Field Coils: 4 Bearing: Single Ball Bearing Oil Seal at Drive End Includes Mounting Plate with (2) 12.9mm ID Holes Condition: NewAPPLICATIONS: Fisher Snow Plow UniMount Hydraulic Pump Systems Western Snow Plow UniMount Hydraulic Pump Systems Fenner Stone Snow Plow Motor Applications Northman Snow Plow Motor Applications NOTE: For insulated ground version, use 82-6852-1. ⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.

• Compatible with CASE, FISHER, PRESTOLITE. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Prestolite: 46-2473 / 46-2482 / 46-2584 / 46-2743 / 46-3618 / 46-3938 / Prestolite: Mdl-2256 / Mkw-4009 / Mkw-4011 / Prestolite: Mue-6103 / Mue-6103S / Mue-6111 / Mue-61118 / Mue-6111S / Prestolite: Mue-6206 / Mue-6206As / Mue-7001 / Western: 50133 / 54133 / 56058 / 56062 / 56133 / 56398 / 56410 / 58058 / 58062 / 58082 / Fisher: A5819 / Fenner Stone: M4-3499-00 / Northman: 40008 / Bosch: 9130450083 / Johnson Electric: Mm18896 / Mm18996
• Applications: Fisher Snow Plow Applications: / Fisher Unimount Hydraulic Pump Lift Motor Systems / Fisher Snow Plow Hydraulic Pump Applications / Fisher Part Number: A5819 / Western Snow Plow Applications: / Western Unimount Hydraulic Pump Lift Motor Systems / Western Snow Plow Hydraulic Pump Applications / Western Part Numbers: 50133 / 54133 / 56058 / 56062 / 56133 / 56398 / 56410 / 58058 / 58062 / 58082 / Additional Plow Applications: / Fenner Stone Snow Plow
• Applications: Stone Snow Plow Motor Applications (M4-3499-00) / Northman Snow Plow Motor Applications (40008) / / Motor Features: / 16Mm (0.626 In) Slotted Output Shaft / Dual 5/16-24 Terminal Posts / 4.5-Inch (114.3Mm) Frame Diameter / 8.24-Inch (209.3Mm) Overall Length / 4-Field Coil Design For Extra Power / Single Ball Bearing Construction / Oil Seal At Drive End / Includes Mounting Plate With (2) 12.9Mm Id Mounting Holes / Cast Aluminum Drive End With...
• Electric Motor - Voltage: 12V Source: Aftermarket
